Chem-Farm Gallery - CaseIH

  • These bracket designs can be used with any tank with a saddle or support structure. We just like the shiny stainless.
  • All of our brackets are powder coated black.
  • Other colors are available upon request, but require a little lead time and a small fee.
  • Click on any picture below to see a larger view.

Quadtrac and Rowtrac (Quad Row Crop)

Our brackets has been verified on the tractors shown below. We believe that the brackets will work on all Tier 3 and Tier 4 Quadtracs and Rowtracs. The bracket is designed to be used without the belly weight.

CaseIH 400 Tier 4 Rowtrac - Front Mount Tank Bracket (Shown with 370 gallon tanks)

The RowTrac bracket is designed to be used without the belly weight. A design to be used with the belly weight is available. A great option for mounting a rock basket!

CaseIH 600 Tier 4 Quad - Front Mount Tank Bracket (Shown with 370 gallon tanks)

The QuadTrac bracket is designed to be used without the belly weight. A design to be used with the belly weight is available. A great option for mounting a rock basket!

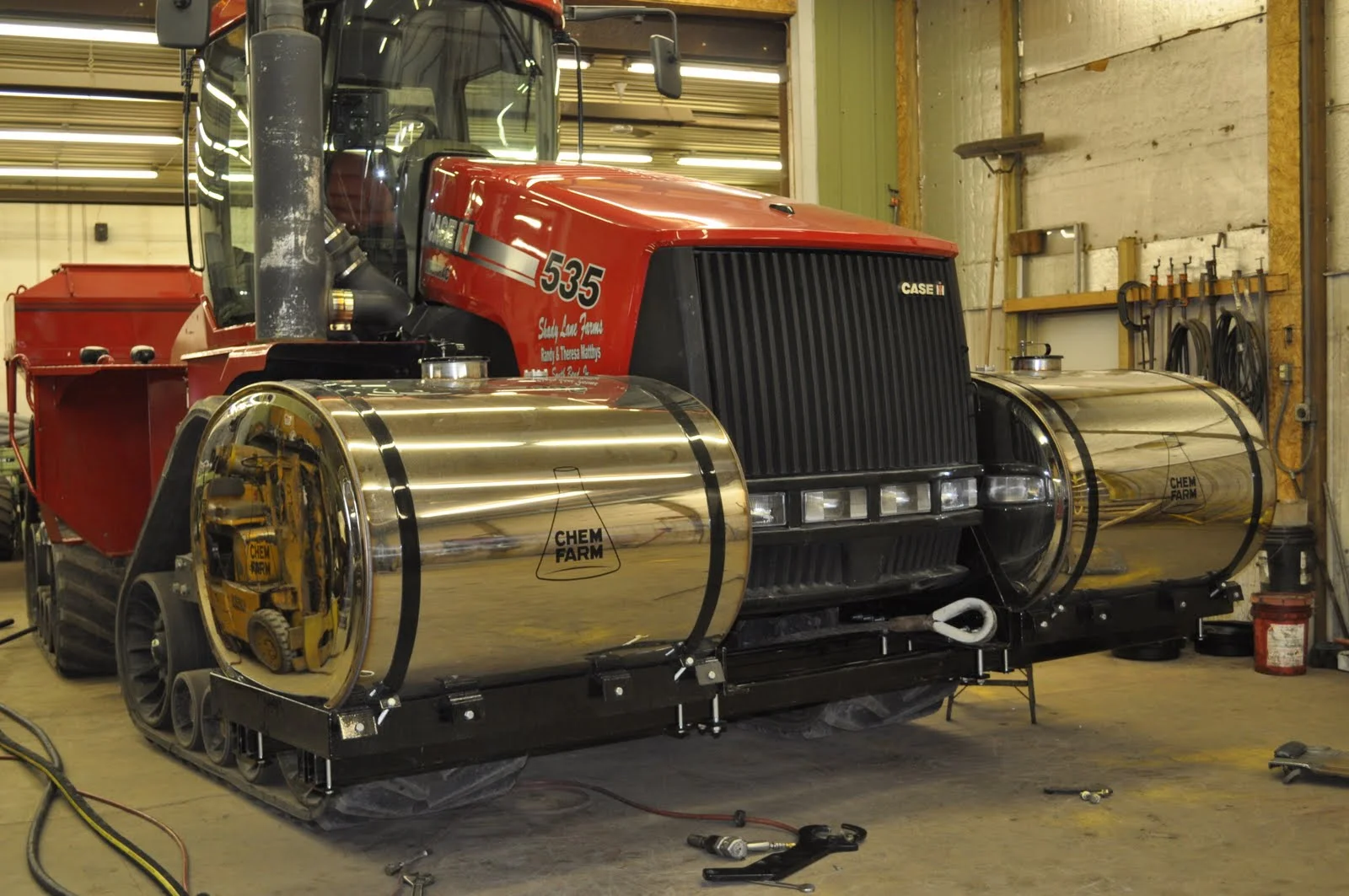

CaseIH 535 Tier 3 Quad - Front Mount Tank Bracket (Shown with 370 gallon tanks)


MFWD or FWA

We believe that our brackets will work on all Tier 3 and Tier 4 CaseIH Magnum MFWDs with or without a suspended front axle.

CaseIH 315 Magnum - Front Mount Tank Bracket (Shown with 270 gallon tanks)

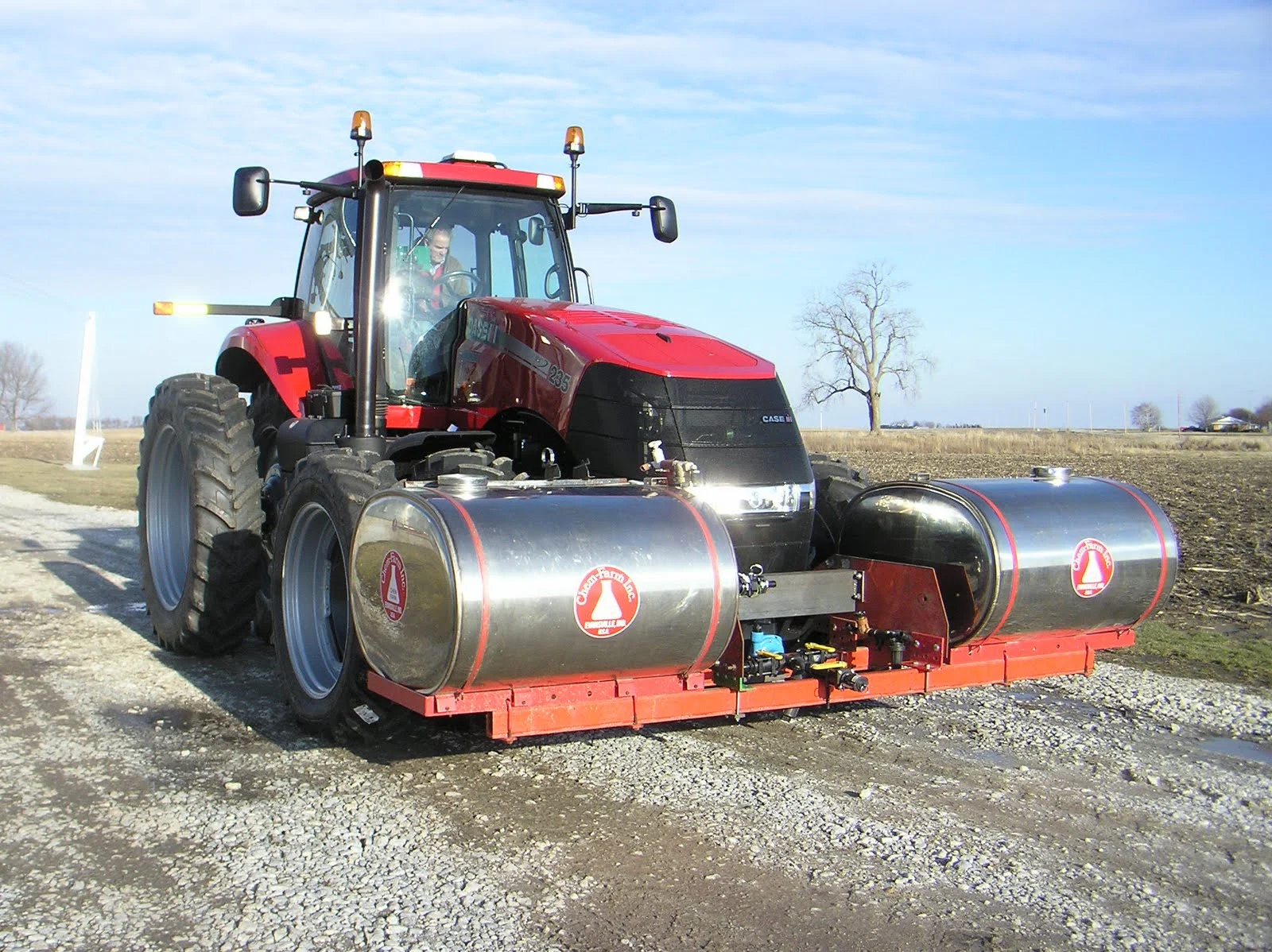

CaseIH 235 Magnum - Front Mount Tank Bracket (Shown with 250 gallon tanks)

CaseIH 215 Magnum - Front Mount Tank Bracket (Shown with 250 gallon tanks)

CaseIH Magnum Hi-Mount - Front Mount Tank Bracket (Shown with 270 gallon tanks)

CaseIH 255 MX - Front Mount Tank Bracket (Shown with 200 gallon tanks)

This was an early prototype. The MX is shown as an example of an available solution.

CaseIH 240 MX - Side Mount Tank Bracket (Shown with 270 gallon tanks)


4WD

CaseIH 335 Steiger - Front Mount Tank Bracket (Shown with 250 gallon tanks)
